Long Description

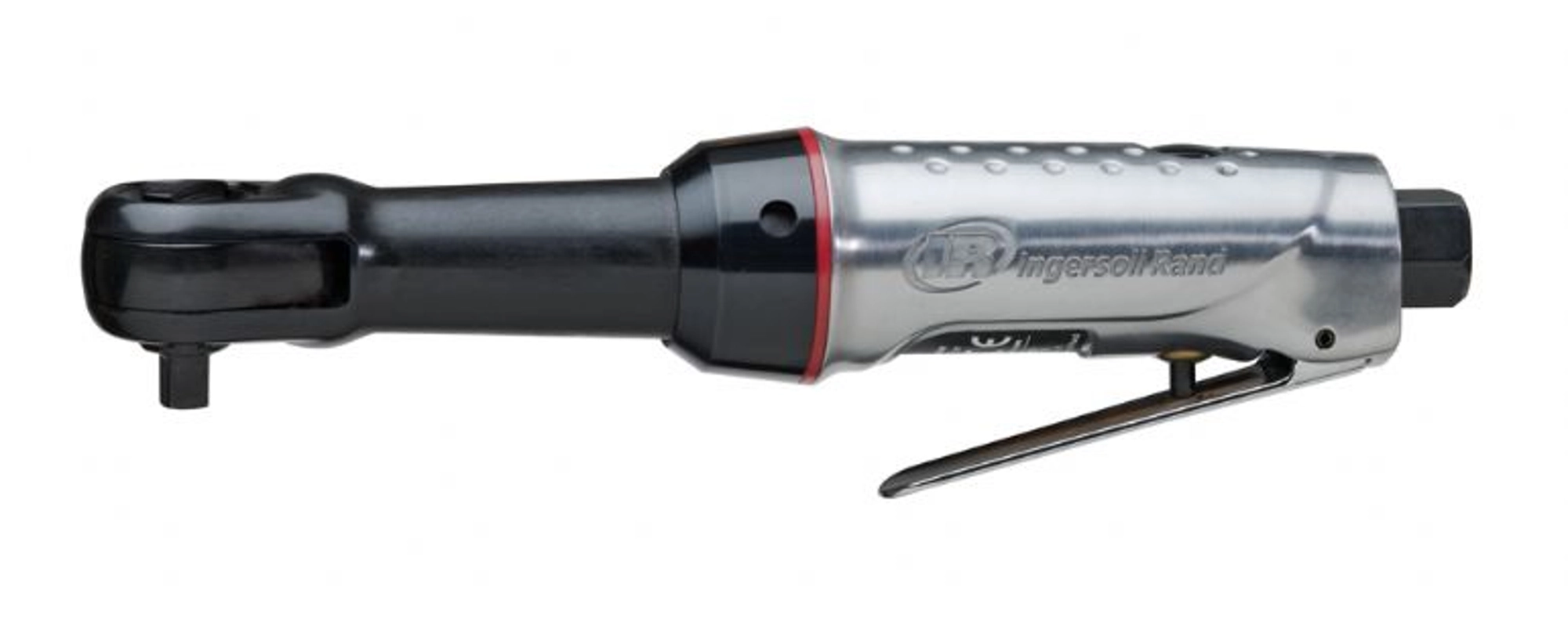

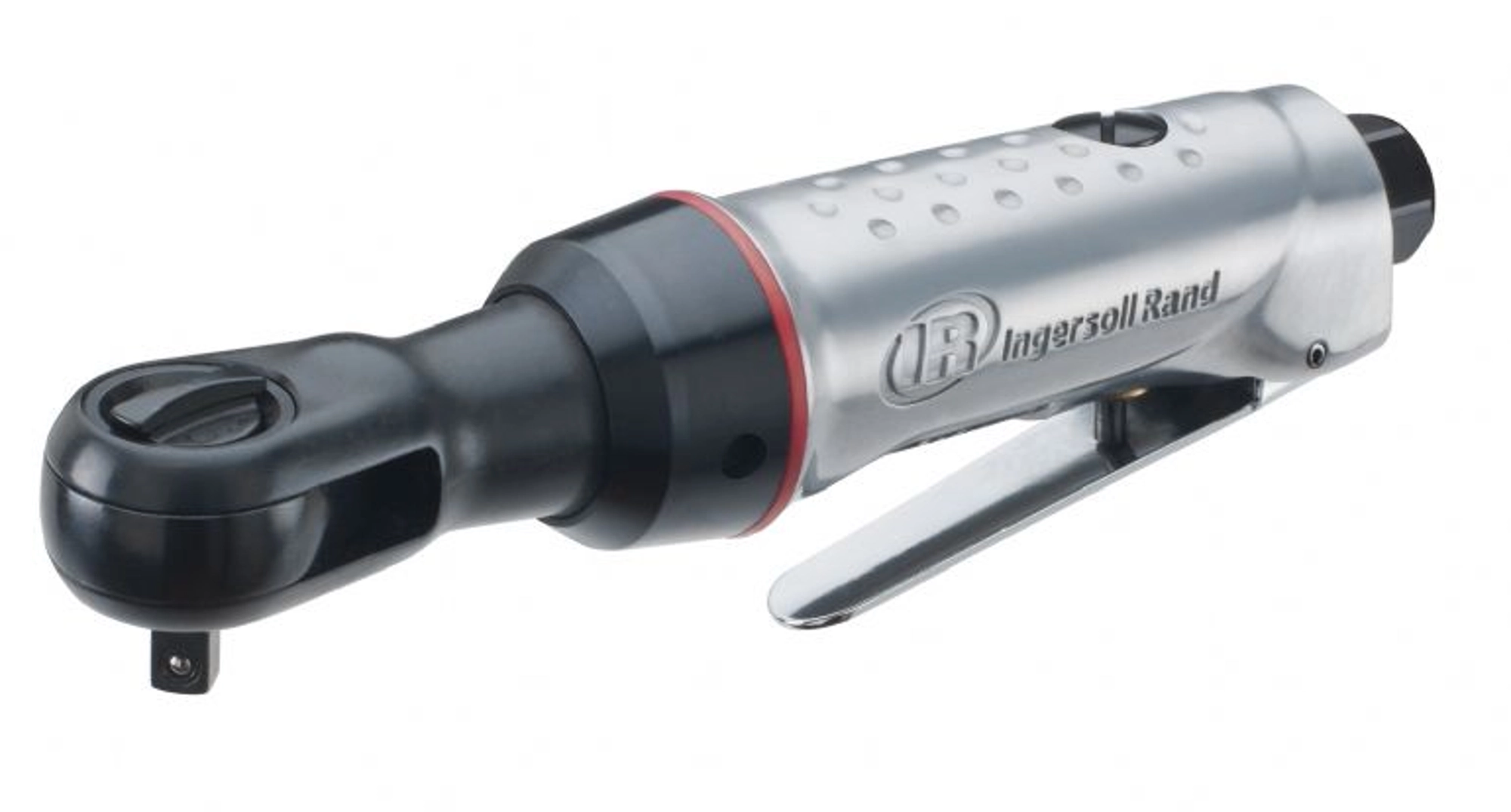

The 105 Series of air ratchet wrenches are small, durable, and easy to handle for vehicle repair technicians. The low profile forward/reverse control has a wide diameter for easy gripping and increased control in confined spaces.
UPC
663023077017
Product Application and Uses
To remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type
Lever
Air Consumption (cfm)
18
Air Consumption (l/min)
510
Air Inlet
1/4" NPT
Air Pressure (psi)
90
Average Air Consumption (cfm)
3
Average Air Consumption (l/min)
85
Configuration/Handle Type
Straight
Drive Size (in)
1/4
Duty Rating
Industrial Duty
Exhaust Location
Rear
Max Reverse Torque (ft-lb)
25
Torque Range (ft-lb)
5-20
Max Free Speed (rpm)
280
Handle Material
Aluminum
Housing Material
Aluminum
Max Bolt Capacity Sae Grade 5 Bolt Diameter (in)
3/8
Min Hose Size (in)
3/8
Number of Power Settings
Continuous
Power Source
Air Powered
Product Height (in)
1.35
Product Length (in)
7.29
Product Weight (lb)
1.4
POWER & SPEED: With 25 ft-lb max torque and 250 rpm free speed, you can count on the 105 Series to deliver impressive power.

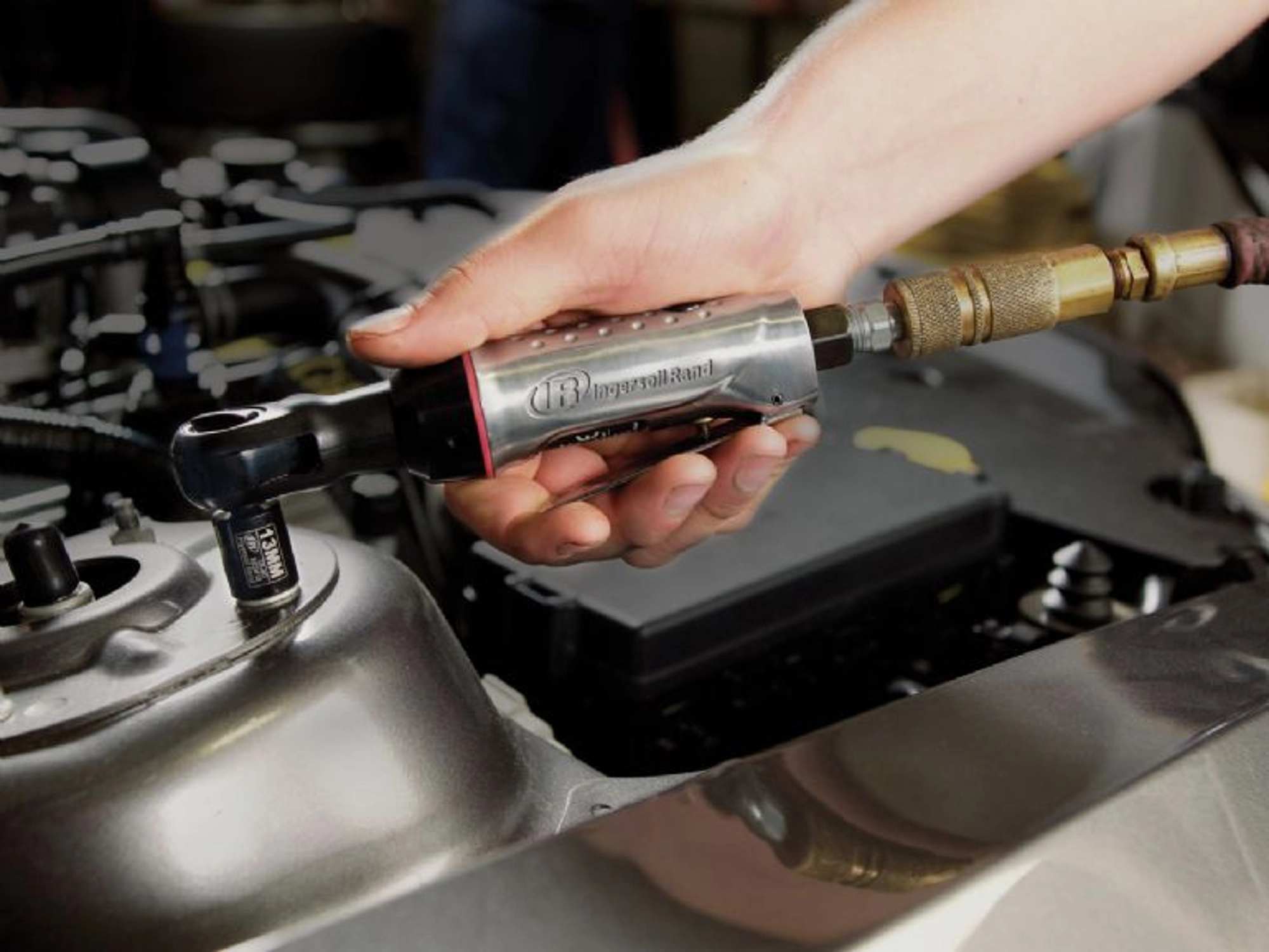

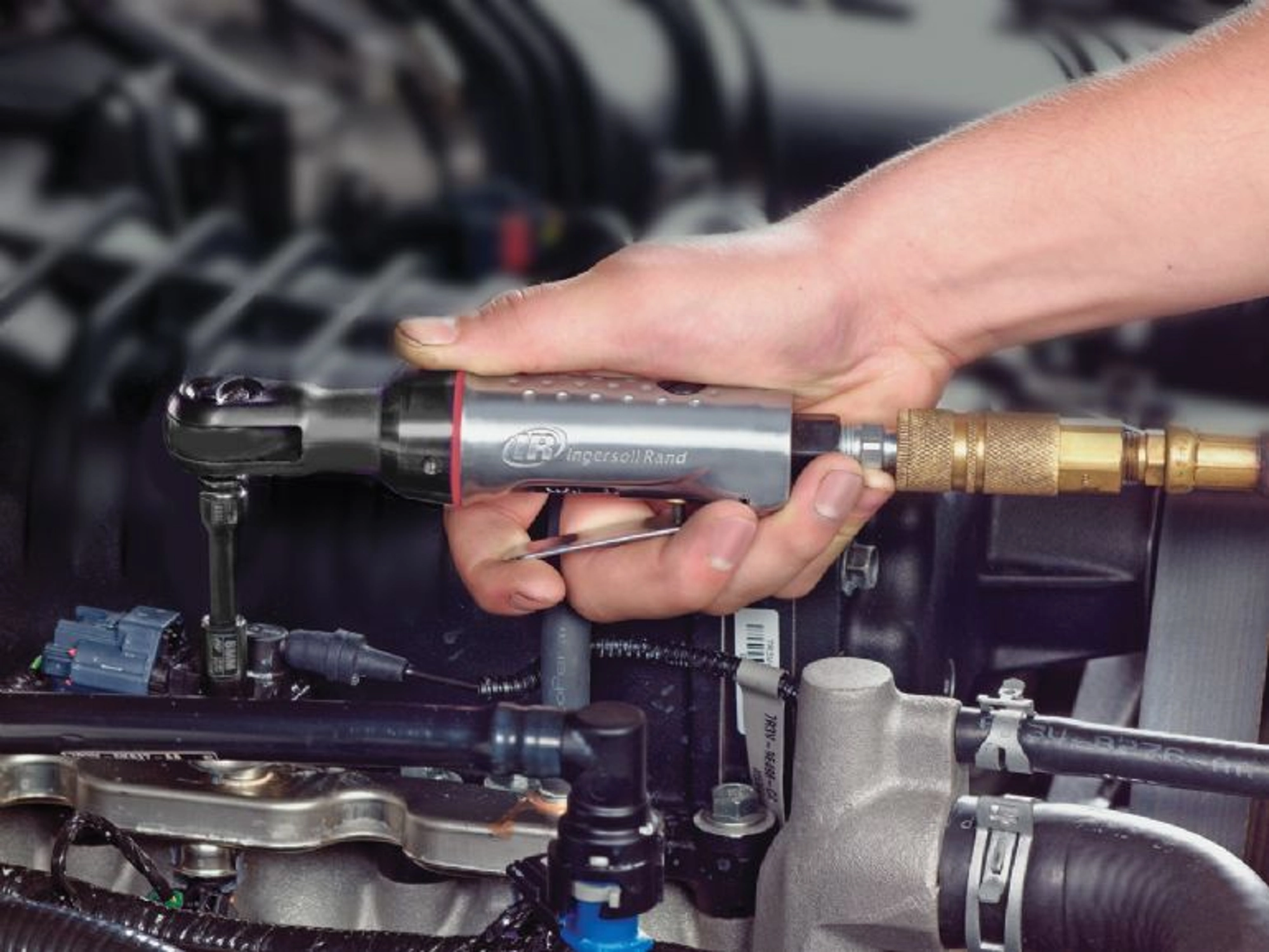

ACCESS & REACH: The 105 Series mini ratchet wrenches are small and nimble enough to tackle jobs in both tight and hard to reach places.
DURABLE: With an aluminum housing and steel head construction, the 105 Series has improved durability and consistent performance.
INCREASED SAFETY: The ball dent anvil found on each member of the 105 Series provides a more secure link to the socket, increasing operator safety.
