#11010

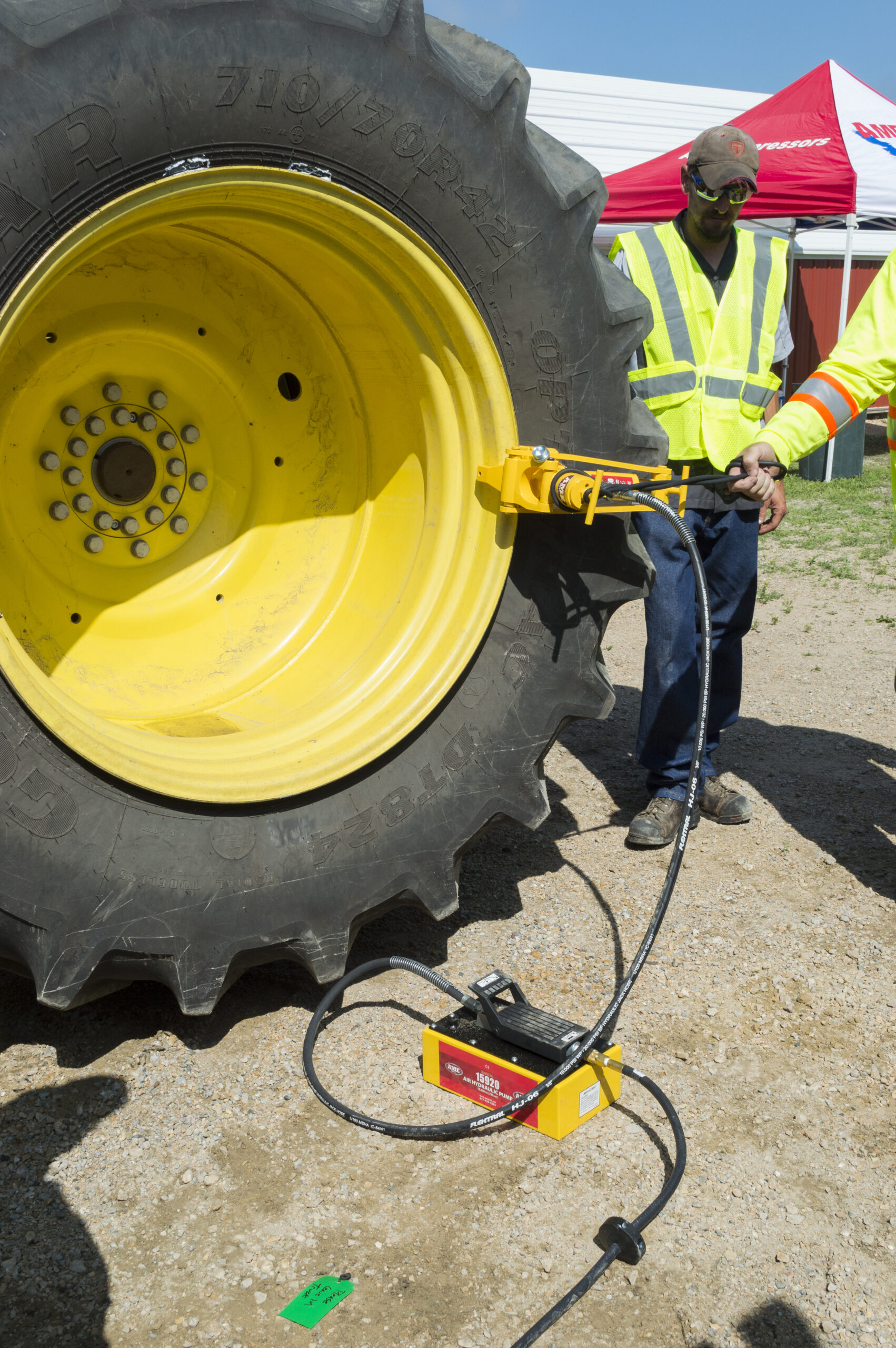

Most popular tool for breaking beads on all agricultural wheels
Used on construction wheels up to 25"
Works on single, 2 and 3 piece wheels
Tool clamps hydraulically to the wheel and then breaks bead with 11 tons of force
3.75" (9.5 cm) stroke length
Used with 10,000psi (700 bar) air/hydraulic pump
Weight 34 lbs (15.5 kg) Builds 10,000 PSI of pressure to fit the majority of tools on the market
Operates on 80-120 PSI of inlet air pressure. (Standard on most compressors and shop air)
Durable Metal Air Motor Assemblies
Designed specific to conditions normally associated with OTR sites
Oil Capacity: 5 Quarts ( 4.7 Liters)
Reservoir Type: Steel
23 lbs (10.4 kg) 10,000 psi (700 bar) working pressure hydraulic hose
Equipped with 3/8" NPT ends, including one swivel end
Meets IJ100 Jack Hose specification
Each hose is tagged with laminated - Do Not Remove tags for OSHA compliance
Hose Lengths: 8'
Hi Flow Male
Other sizes (including custom sizing) available
#15920
Oil Capacity: 5 Quarts ( 4.7 Liters)
#16040
