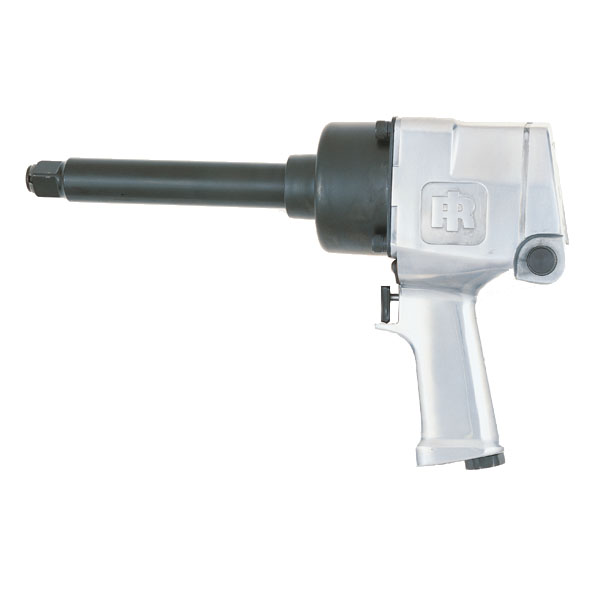

The 261 Series impact wrench is ideal for vehicle repair and heavy truck and machinery jobs where you’ll benefit from the square socket retaining ring and the power behind the vane motor. Trigger actuation and a power regulator let you complete projects with control and ease.
RPM
5,000
Average CFM
9.5
CFM @ Load
38
Drive
3/4"
Max. Torque
1,100 ft lbs
Actuation/Throttle Type/Switch Type
Trigger
Air Consumption @ Load (cfm)
38
Air Consumption @ Load (l/min)
1076
Air Inlet
3/8" NPT
Air Pressure (psi)
90
Anvil Length
6" Extended
Average Air Consumption (cfm)
9.5
Average Air Consumption (l/min)
269
Blows per Min
1000
Configuration/Handle Type
Pistol Grip
Drive Size (in)
3/4
Drive Type
Square
Duty Rating
Super Duty
End Plates
Cast Iron
Exhaust Location
Bottom
Free Speed Sound Pressure/Power Db(A)
100.3 / 111.3
Max Reverse Torque (ft-lb)
1100
Torque Range (ft-lb)
200-600
Max Free Speed (rpm)
5500
Hammer Case
Steel
Handle Material
Aluminum
